Permeable Pavers: The Eco-Friendly Driveway and Patio Solution

Looking for an eco-friendly upgrade to your driveway, patio, or walkway? Permeable pavers are an innovative, environmentally responsible alternative to traditional solid paving surfaces that allow rainwater to drain naturally through the surface and into the ground beneath. Unlike standard concrete or asphalt, which create runoff that floods yards and overwhelms storm drains, permeable pavers are designed with wider joints or built-in drainage channels that let water pass through — reducing flooding, replenishing groundwater, and filtering pollutants from stormwater. They’re increasingly popular for DIY driveways, patios, walkways, and even parking areas, and many municipalities now offer tax credits or stormwater fee discounts for installing them.

This guide covers everything you need to know to install permeable pavers yourself — how they work, their environmental benefits, how the installation differs from regular pavers, and a detailed cost comparison to help you decide if they’re right for your project. For a related project, see our step-by-step paver patio installation guide.

What Are Permeable Pavers and How Do They Work?

Permeable pavers are a category of paving systems designed to let water infiltrate through the surface rather than running off. There are three main types.

Permeable Interlocking Concrete Pavers (PICP)

These look like standard concrete pavers but have wider spacer nubs that create larger joints — typically 1/8 to 1/4 inch — filled with small, angular stones rather than polymeric sand. Water flows through these stone-filled joints into a layered aggregate base beneath.

Porous Concrete or Asphalt

These materials have reduced fine aggregate, creating microscopic voids that allow water to pass through the entire surface. They’re typically installed by professionals and less common for DIY projects.

Permeable Grid Systems

Plastic or concrete grid pavers — sometimes called grass pavers — feature open cells that you fill with gravel or topsoil and grass. They’re popular for overflow parking areas and are very DIY-friendly.

How the System Works

The magic isn’t just in the paver itself — it’s in the entire system beneath. A properly installed permeable paver surface includes the paver surface (the visible walking/driving surface with drainage joints), a bedding layer (typically 2 inches of small, clean, angular stone like #8 or #57 stone), a reservoir base (6 to 12 inches of clean, open-graded crushed stone like #57 that stores water temporarily), geotextile fabric (which separates the stone base from native soil), and the subgrade (native soil that absorbs the water). When rain falls, it flows through the joints, into the bedding layer, down into the stone reservoir, and finally infiltrates into the ground below — mimicking natural hydrology.

Benefits of Permeable Pavers

Stormwater Management

A typical 1,000-square-foot permeable paver driveway can absorb thousands of gallons of rainwater per rainfall event that would otherwise run off into streets and storm drains. This reduces localized flooding, prevents erosion, and decreases the burden on municipal stormwater infrastructure. Permeable pavers are a key part of what the EPA calls green infrastructure.

Environmental Impact

• Reduces water pollution — As water percolates through the stone base, it’s naturally filtered. Heavy metals, hydrocarbons from vehicles, and other pollutants are trapped in the aggregate and broken down by bacteria.
• Recharges groundwater — Instead of sending rainwater away as runoff, permeable pavers return it to the aquifer, helping maintain local water tables.
• Reduces urban heat island effect — Permeable surfaces tend to stay cooler than solid concrete or asphalt, especially grass grid systems.

Practical Advantages

• No standing water — Because water drains through immediately, you’ll never have puddles or ice patches on your driveway.
• Durability — Permeable concrete pavers are just as strong as standard pavers and can handle vehicle traffic.
• Municipal incentives — Many cities offer stormwater fee reductions of 25–50% or tax credits for installing permeable surfaces. Check with your local public works department.

Materials & Tools Needed

• Permeable pavers — Order 10–15% extra for cuts.
• Gravel base material (#57 clean stone) — 6–12 inches deep depending on your soil’s drainage rate and local rainfall.
• Bedding stone (#8 or #57 angular stone) — 2 inches deep. Do NOT use sand — sand clogs the drainage system.
• Geotextile fabric — Heavy-duty, non-woven fabric to separate the base from the soil.
• Plate compactor — For compacting the base layers.
• Level (24-inch or longer) — For checking surface flatness.
• Rubber mallet — For tapping pavers into position.
• Edge restraints and landscape spikes — To hold pavers in place at the perimeter.
• Joint stone (small angular chips, like #8 or #9 stone) — Fills the wider joints between pavers. Do NOT use polymeric sand — it would seal the joints and defeat the purpose.
• Paver splitter or angle grinder with masonry blade — For cutting edge pavers.
• Stakes, string line, tape measure, broom, shovel, and rake.

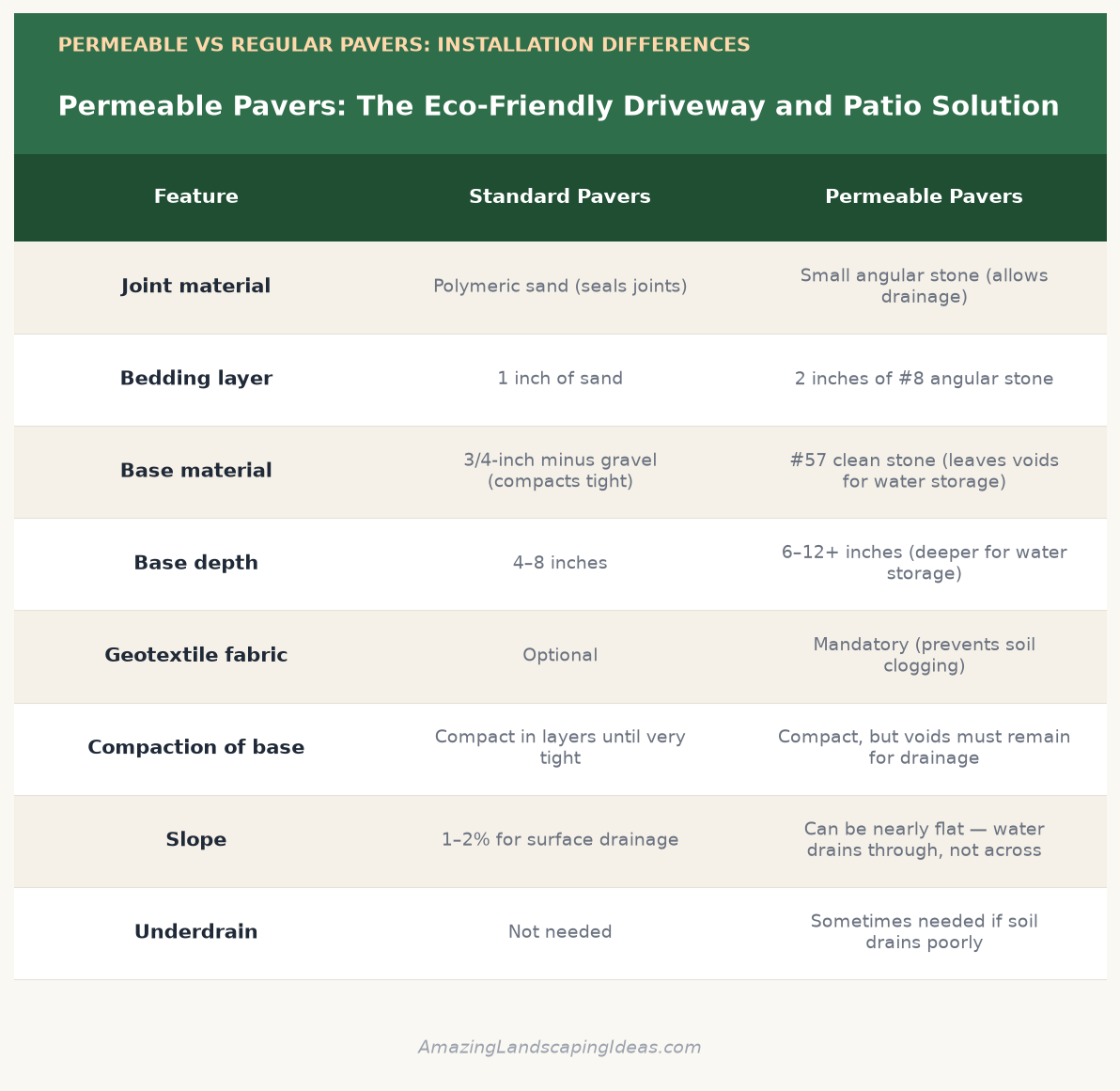

Permeable vs. Regular Pavers: Installation Differences

If you’ve installed standard pavers before, you already know the basics — but permeable pavers require several important differences. The biggest conceptual shift: with standard pavers, your goal is to shed water off the surface. With permeable pavers, your goal is to let water through the surface and store it in the base until the soil can absorb it. Every material choice — from the joint filler to the base stone — must support that goal.

A Critical Warning

Never substitute sand for the bedding stone in a permeable system. Sand is too fine — it will migrate into the stone base below, clogging the voids and destroying the system’s drainage capacity within months. Always use clean, washed angular stone as specified by the paver manufacturer.

Cost Comparison: Permeable vs. Standard Pavers

While permeable pavers cost more upfront — mainly due to the deeper base — the long-term savings from reduced stormwater fees, longer lifespan, and no need for a separate drainage system can make them more economical over 20 years, especially in areas with high stormwater charges or frequent flooding.

DIY Installation: Step-by-Step

Step 1: Test Your Soil

Before anything else, perform a percolation test. Dig a hole 12–18 inches deep and 12 inches wide, fill it with water, and let it drain completely. Refill it and time how long it takes to drain. If water drains at a rate of at least 0.5 inches per hour, your soil is suitable for a permeable paver system without an underdrain. If drainage is slower, you may need a deeper base reservoir or a perforated underdrain pipe connected to a suitable outlet. Geographic note: clay-heavy soils common in parts of the Southeast, Midwest, and Pacific Northwest drain poorly and may require an underdrain, while sandy soils common in coastal areas and the Southwest drain excellently and are ideal.

Step 2: Excavate to the Proper Depth

Your total excavation depth = paver thickness + 2 inches bedding stone + 6–12 inches base reservoir. For a typical 3-inch permeable paver in well-draining soil, that’s 11–17 inches deep. This is significantly deeper than a standard paver project, so plan for more excavation time and disposal.

Step 3: Lay Geotextile Fabric

Line the entire excavated area with non-woven geotextile fabric, overlapping seams by at least 12 inches. Run the fabric up the sides of the excavation. This prevents soil from migrating into your stone base and clogging the drainage voids.

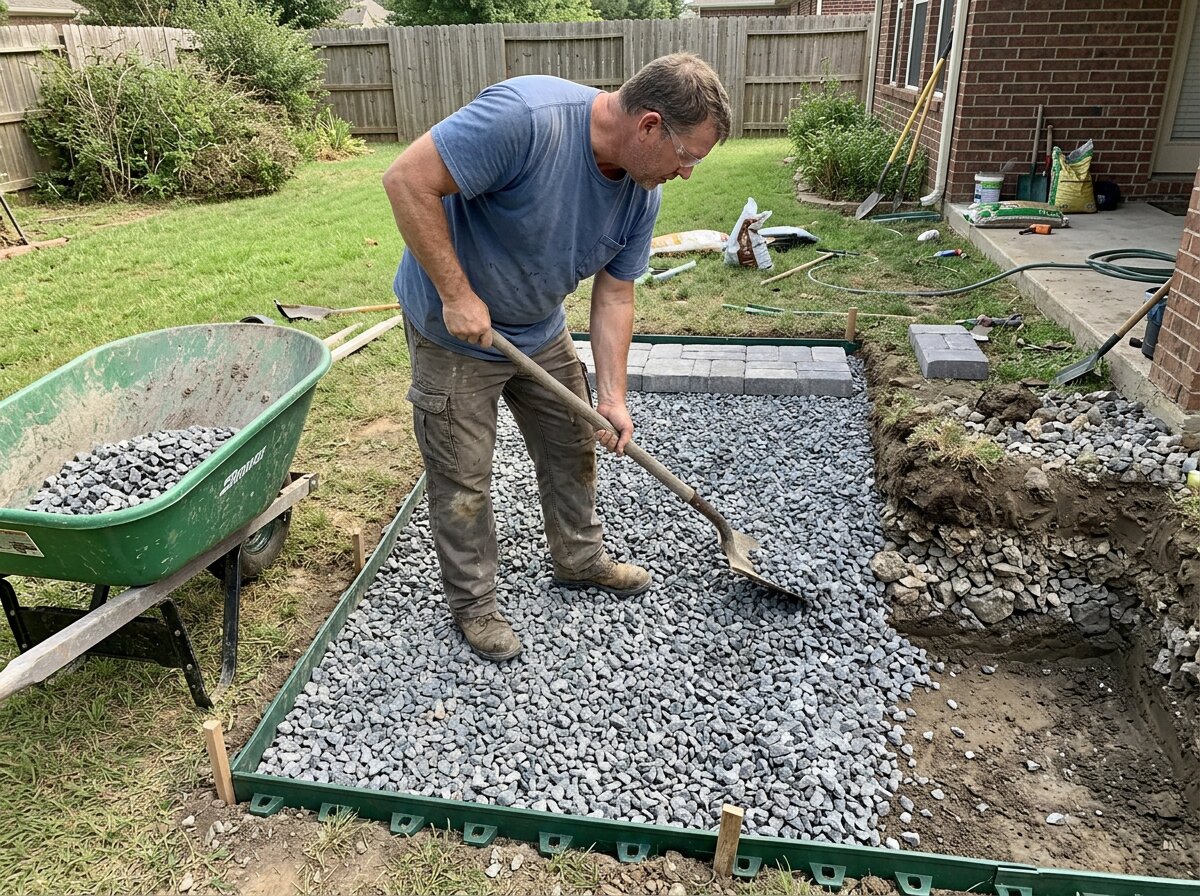

Step 4: Install the Stone Base (Reservoir Layer)

Spread #57 clean angular stone in 3–4 inch lifts (layers), compacting each layer with the plate compactor before adding the next. The goal is a stable, well-compacted base that still retains drainage voids between the stones — clean, washed stone naturally maintains these voids even after compaction. Check the base for flatness with your level or a straight 2×4. The surface should be flat; permeable systems don’t need the 1–2% slope that standard pavers require, because water drains downward through the surface rather than across it.

Step 5: Add the Bedding Layer

Spread 2 inches of #8 or #57 angular bedding stone over the compacted base. Screed it level using pipes or rails and a straight 2×4, exactly as you would with sand — but using stone instead. Do not compact this layer before laying pavers; you’ll compact after the pavers are in place.

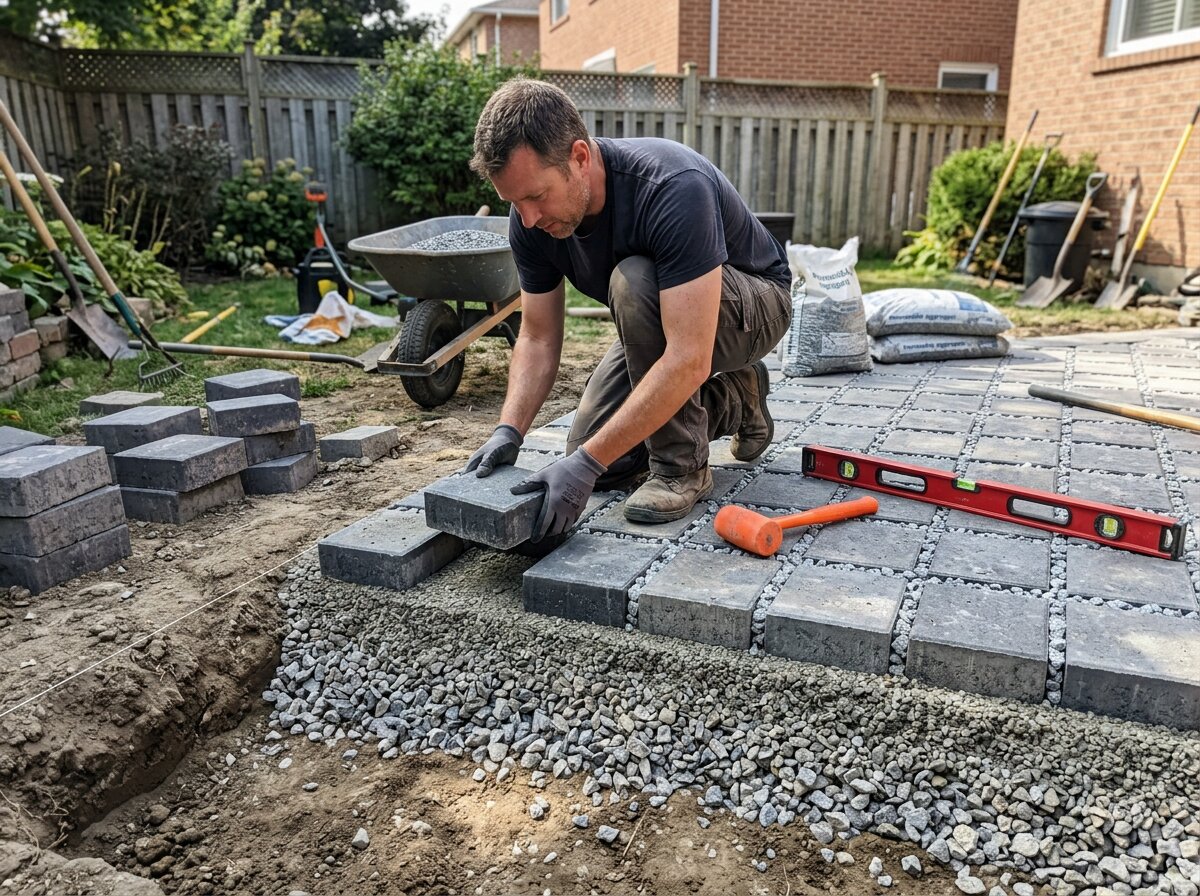

Step 6: Lay the Pavers

Start at a corner or straight edge and work outward, just as with standard pavers. Lay pavers in your chosen pattern — running bond and herringbone both work well with permeable pavers. Tap each paver into place with the rubber mallet and check frequently with your level. Because permeable pavers have wider joints, pay extra attention to keeping your lines straight — the wider gaps make misalignment more visible.

Step 7: Install Edge Restraints

Secure edge restraints along all open perimeters with landscape spikes. This is especially important for permeable systems because the wider joints mean pavers can shift more easily without the lock that polymeric sand provides in standard installations.

Step 8: Compact and Fill Joints

Run the plate compactor with a rubber pad over the pavers to set them into the bedding stone. Then spread small angular joint stone (#8 or #9 chips) over the surface and sweep it into the joints with a broom. Compact again, sweep more stone into any low joints, and repeat until the joints are full. Do not use polymeric sand — it would seal the joints and eliminate the drainage function that makes the system permeable. The joint stone stays in place through friction and the interlock of the angular particles.

Step 9: Final Inspection

Check the entire surface for flatness and fill any remaining low joints. The system is ready to use immediately — there’s no curing time like with polymeric sand. To test your installation, run a hose on the surface for several minutes. Water should drain through the joints visibly and not pool on the surface. If you see pooling, you may have a clogged joint (remove the stone, clean, and refill) or a base drainage issue.

Maintenance for Permeable Pavers

Permeable pavers require slightly different maintenance than standard pavers.

• Sweep regularly — Debris on the surface can wash into joints and clog them over time.
• Vacuum joints annually — Use a shop vac to remove sediment and debris from the joints every 1–2 years, then refill with clean joint stone. This is the most important maintenance task — clogged joints are the #1 cause of permeable system failure.
• Never seal the surface — Sealers would block drainage. Permeable pavers are designed to remain unsealed.
• Avoid power washing joints — High pressure can blow the joint stone out. If you power wash the paver surface, use low pressure and keep the nozzle moving.
• Refill joint stone as needed — Joints may settle over time; top off with fresh angular stone.
• Inspect after major storms — Check for any areas where water is pooling, which indicates a clog or settling issue.

With proper maintenance, a permeable paver system can function effectively for 20–30 years.

Climate and Site Considerations

When to Call a Pro

DIY permeable paver installation is feasible for experienced homeowners, but consider professional help when:

• Your soil drains poorly (clay soils, high water table) — A pro can design an underdrain system or alternative.
• The project exceeds 1,000 square feet — The excavation depth and stone volume become substantial.
• Local regulations require engineering — Some municipalities require a professional design and permitting for permeable systems over a certain size.
• You need to tie into existing stormwater infrastructure — Connecting underdrains to municipal systems requires knowledge of local codes.
• The site has a high water table — If groundwater is within 2 feet of the surface, a permeable system may not function and needs professional evaluation.

Not feeling confident? Local partners can complete this job quickly and professionally.

Conclusion

Permeable pavers are a smart, eco-friendly upgrade for any driveway, patio, or walkway. They manage stormwater naturally, reduce flooding, filter pollutants, and often qualify for municipal incentives that offset their higher upfront cost. While the installation shares many steps with standard paver projects, the key differences — a deeper base, stone bedding instead of sand, and open stone-filled joints instead of sealed polymeric sand — are essential to understand before you start. With proper site evaluation, careful material selection, and regular joint maintenance, your permeable paver system will provide decades of beautiful, functional, and environmentally responsible surface for your home. For more outdoor project ideas, visit the Amazing Landscaping Ideas homepage.
